  • Introduction

  • Specification

  • Related Article
    • Introduction

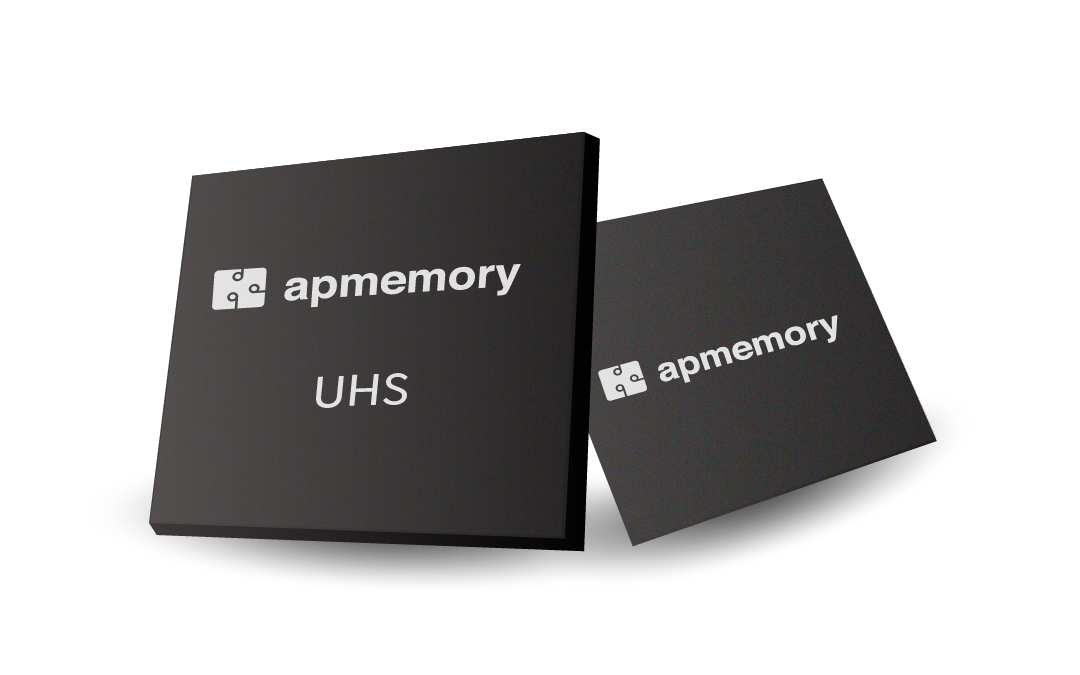

    About UHS

    AP Memory is the first company to introduce UHS (Ultra High Speed) memory to the market. As part of the PSRAM product line, UHS offers DRAM-like high bandwidth while maintaining the benefits of low pin-count and low power consumption compared to standard DRAM or LPDDR. Additionally, UHS products support even higher data transfer rates compared to QSPI or OPI/HPI PSRAM.

    UHS products also help simplify design of system devices, helping them meet specification criteria while enhancing performance.

    Key Features

    • Ultra-high data rate transmission:  2133Mbps
    • Low pin-count: simplifies design of system device to reduce system costs

    Specification

    Filters

  • Density
  • 16Mb
  • 32Mb
  • 64Mb
  • 128Mb
  • 256Mb
  • 512Mb
    •
  • Voltage
  • 1.8V
  • 3.0V
  • 1.8V/1.2V
    •
  • Config.
  • X4
  • X8
  • X16
    •
  • Data rate (Mbps)
  • 144
  • 84
  • 333
  • 133
  • 1334
  • 2133
    •
  • Bandwidth (MBps)
  • 4266
    •

    Clear all

    Part Number

    Density

    Voltage

    Config.

    Data rate (Mbps)

    Bandwidth (MBps)

    Commercial

    Industrial

    Status

    KGD

    Learn more

    AP26408A-OK2

    64Mb

    1.8V

    X8

    1334

    1334

    -40~85

    -40~105

    MP

    V

    Add inquiry

    AP36408B-OK2

    64Mb

    1.8V/1.2V

    X8

    2133

    2133

    -40~85

    -40~105

    MP

    V

    Add inquiry

    AP325608A-OK

    256Mb

    1.8V/1.2V

    X8

    2133

    2133

    -40~85

    -40~105

    MP

    V

    Add inquiry

    AP325616A-OK

    256Mb

    1.8V/1.2V

    X16

    2133

    4266

    -40~85

    -40~105

    MP

    V

    Add inquiry

    AP351208C-OK

    512Mb

    1.8V/1.2V

    X8

    2133

    2133

    -40~85

    -40~105

    MP

    V

    Add inquiry

    AP351216C-OK

    512Mb

    1.8V/1.2V

    X16

    2133

    4266

    -40~85

    -40~105

    MP

    V

    Add inquiry

    Drag the table to view the complete information.

    • Please send enquiry to us for discussion on density, spec and Verilog model.
    • Operating temperature as indicated in datasheet.
    • Status: UD: Under Development; ES: Engineering Sample; CS: Customer Sample; MP: Mass Production.
    • Packages support by request.


    Related Article

    2024-06-07

    Mobiveil’s PSRAM Controller IP Lets SoC Designers fully Leverage AP Memory’s Ultra High Speed (UHS) PSRAM Memory
    5x Higher Performance Gains Over traditional PSRAM Devices
    3X Lower Power Compared to DRAM
    Close to 3X Fewer Pin Counts
    Product Press Release

    2023-04-11

    Mobiveil’s PSRAM Controller IP Lets SoC Designers Leverage AP Memory’s Xccela x8/x16 250 MHZ PSRAM Memory

    Gains of 10x Higher Density Over eSRAM, 10x Lower Power Compared to Standard DRAM With Close to 3x Fewer Pin Counts.


    Product Press Release

    2022-06-07

    AP Memory launches brand-new product series of 512Mb Ultra-High-Speed (UHS) and 32Mb Ultra-Low-Swing (ULS) PSRAM

    AP Memory has announced today the launch of its new Ultra High Speed (UHS) and Ultra Low Swing (ULS) PSRAM. AP Memory rolls out AP351216C/AP351208, to further expand the density of AP Memory’s UHS products series to 512Mb, and AP43208B, the industry’s first ultra-low power 32Mb ULS product.

    Product Press Release
    Explore More

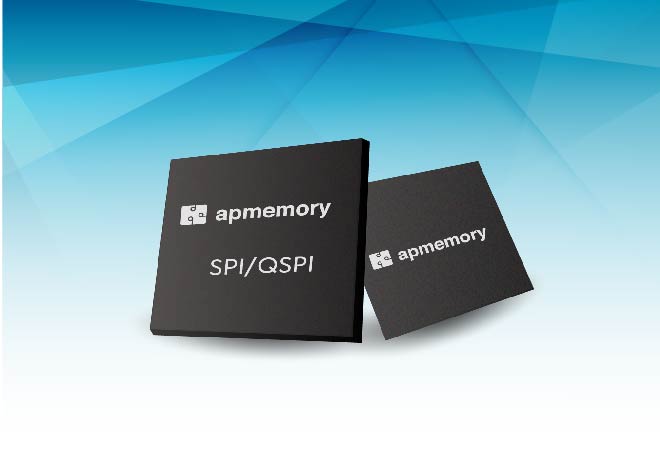

    SPI/QSPI

    Wi-Fi module devices, Internet of Things (IoT), display devices, wearable devices, industrial sensor equipment

    PSRAM

    More

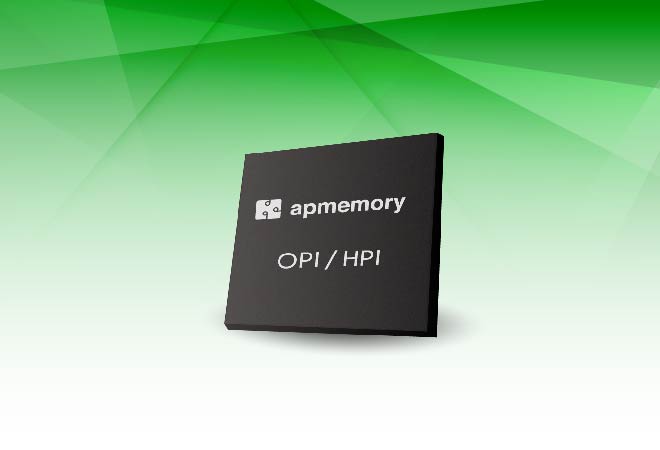

    OPI/HPI

    Modem networking devices, Internet of Things (IoT), edge Artificial Inteligence (AI) compute, smart display devices, wearable devices

    PSRAM

    More

    OPI_LV/HPI_LV

    Modem Connectivity Devices, Internet of Things (IoT), edge Artificial Inteligence (AI) compute, smart display devices, wearable devices, battery-powered products

    PSRAM

    More

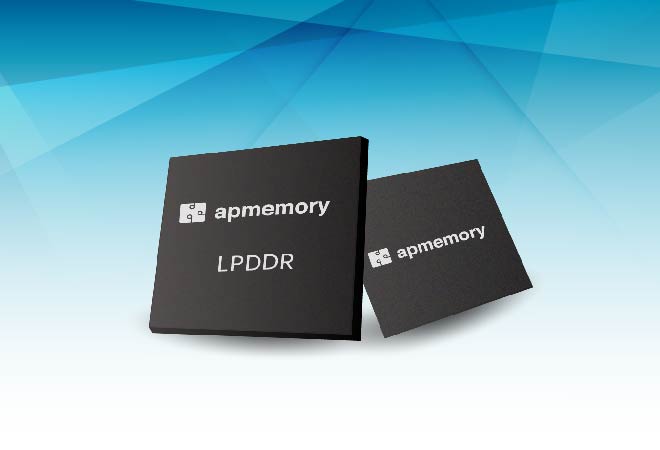

    LPDDR
